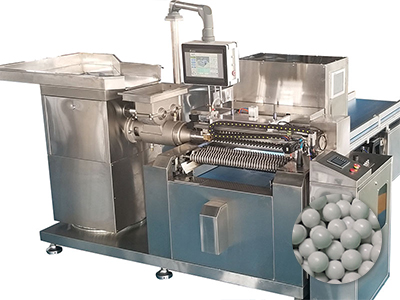

Mesin Pembuat Pil Obat Tradisional Tiongkok (untuk pil berukuran besar)

•

•

•

•

Dier is capable of providing custom-manufactured pharmaceutical granulators with model options of three rollers, five rollers and six rollers, which are typically suitable for production of traditional Chinese medicine large pills of different viscosity and hardness. These traditional Chinese medicine pill machines feature high pass rate for pill production.

• High output and large bowl capacity, available from 100L to 300L to meet various production needs;
• Uniform mixing, suitable for high viscosity materials, such as honeyed pills and highly concentrated pills in pharmaceutical industry, or dough in food industry;
• All parts in contact with materials are made of high grade stainless steel, in compliance with the GMP requirements;
• Easy to disassemble and clean, the rotation axis of the mixing bowl can be 45 degree inclined;
• Detachable mixing bowl can be used as a storage tank independently, this allows multiple bowl to work alternately when used as mixing bowl;
• PLC control achieves fully automatic operation;

• Model: DW－3 /DWS－3

  Output：≤ 300 kg/h (according to the pill specification)
  Pill specification：3, 6, 9, 10 g/pc
  Total power：5kw
  Air pressure ：0.6 Mpa
  Air consumption ：0.2 m³/min
  Dimension：1900×850×1800 mm
  Machine weight：800kg

  Umpan balik formulir
• Model:DW－5

  Output：≤ 450 kg/h (according to the pill specification)
  Pill specification：3, 6, 9, 10 g/pc
  Total power：8.5kw
  Air pressure ：0.65 Mpa
  Air consumption ：0.2 m³/min
  Dimension：2700×2000×1550 mm
  Machine weight: 1500kg

  Umpan balik formulir
• Model: DWS－6 /DWS－6－J

  Output：≤500 kg/h (according to the pill specification)
  Pill specification：3, 6, 9, 10 g/pc
  Total power：10 kw
  Air pressure ：0.6 Mpa
  Air consumption ：0.2 m³/min
  Dimension：2400×2300×1800 mm
  Machine weight: 1200kg
